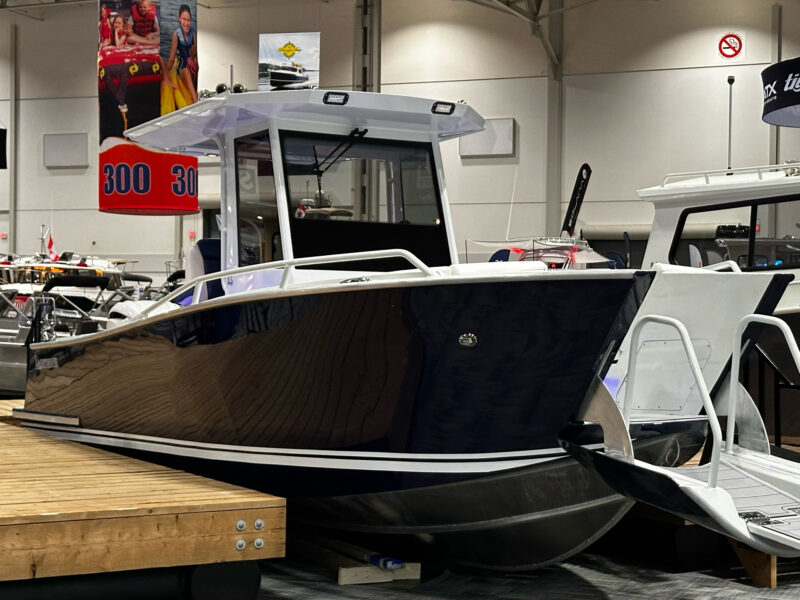

2025 Lighthouse 23 Shorecraft

You won’t find a boat like this anywhere else! Available exclusively through Central Marine. Options include a 350 Yamaha, bow gate and transom walkthrough.

23 ShoreCraft Standard Package Spec’s and Features

• 23’-10” LOA, 8’-6” Beam. 15 deg. deadrise
• All 5083 marine grade aluminum hull construction
• 1/4” bottom, 3/16” sides and deck
• Heavy duty reinforced hull framing and keel bar bow grounding protection
• 3 bulkhead design creates 4 damage control compartments
• Noise and vibration damping foam and insulation throughout hull
• Rounded bow with integrated gate for loading/unloading. Extension ramp and railings included for ease of use. Simple push button  control.
• Fully painted white interior with choice of exterior paint color
• 80 USG (300L) below deck fuel tank. EPA compliant, w/fuel water separator
• Two (2) 900 GPM bilge pumps and high-water alarm
• Two battery setup for cranking and house circuits. Includes switch with combine feature
• Walk-thru transom door to swim deck or dock access
• Telescopic reboarding ladder, with handrail
• Six (6) stainless steel 8” mooring cleats, 3 per side
• Handrail around bow and grabrails throughout interior
• Partially enclosed center console helm station with aluminum hardtop
• Three (3) piece tempered glass windshield with 2 speed heavy duty wiper
• Standard LED navigation lights, and dual trumpet horn
• Deluxe captain and copilot helm seats with armrests, flip up bolster, and footrest
• Dash layout built to accommodate twin 16” displays, helm and controls
• Fusion marine 6 speaker stereo (RA670), and 10” sub. Bluetooth control, SiriusXM ready
• Lockable glove box, compass, multiple USB/power points, and 4 cup holders at helm
• Overhead pod with storage, speakers, USB, lighting controls. Space for radio mounting.
• Tri-color overhead lighting, blue LED deck lighting throughout, and forward flood lights
• Watertight forward console seat with storage
• Large comfortable bow seats with lounge cushions, cup holders, and weathertight storage
• Stern couch style seat with cup holders and vented weathertight storage + mechanical
• Side bolster cushions around perimeter of side skirting
• Anchor lockers port and stbd of bowgate. Additional lockers under console and helm seats

Options as seen on TIBS 2024 model

• Yamaha F350 white saltwater model outboard, stainless prop, DTS controls, electric steering, with autopilot. Isolated battery  charging harness for house circuit included.
• Twin Garmin GPSMAP 8416 (16”) displays with US and Canada charting, and GPS. Transducer features traditional CHIRP sonar +  High def ClearVU and SideVU imaging. Yamaha engine data and autopilot features are fully integrated with Garmin displays.  – SeaDek flooring, grey on black with teak striping shown.
• Docking lights facing forward oƯ bow
• Underwater blue LED lights oƯ transom
• Fresh water washdown pump drawing from below deck 20 USG holding tank. Option to draw raw water from lake also available (add pickup, remove tank)
• Zipwake automatic trim tabs and controls (can remove or swap for Lenco manual type)
• Anodes, Zinc for saltwater use (other options for freshwater)

Additional options available, not shown

• Additional batteries
• Remote battery switches at helm
• Automatic charge relay(s)… for charging batteries outside of cranking circuit (house, etc.). Not required with Yamaha outboards  equipped with isolated charging harness.
• Radar, on pedestal or arch
• Low light or infrared camera
• Remote controlled spotlight
• Some additional options may be available upon request. Let us know.
