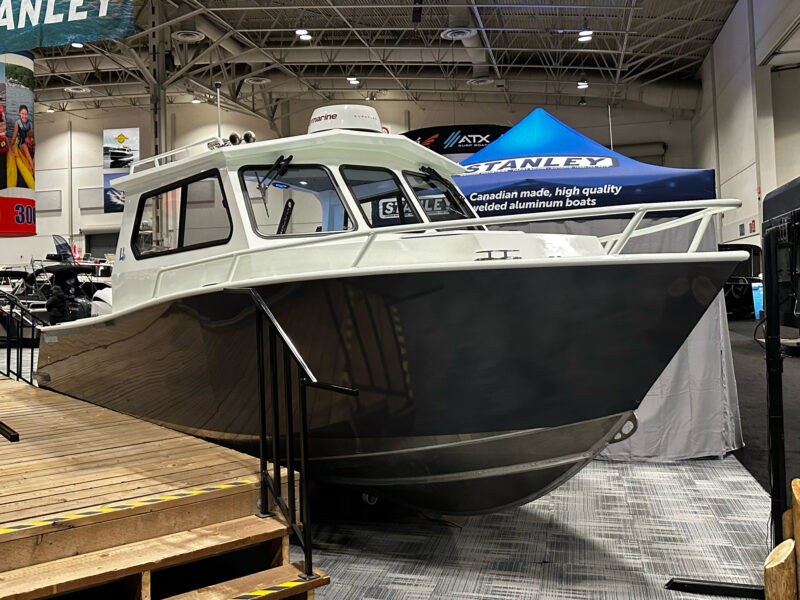

2025 LIGHTHOUSE 23 SPORTFISH

Have you ever wanted to be a part of creating a one-of-a-kind lifetime boat? Well, now you can! This 2025 Lighthouse 23′ Sportfish is the next big release from Lighthouse and is ready to customized.

23 Lighthouse Standard Package Spec’s and Features

• 23’-8” LOA, 8’-4” Beam. 15 deg. deadrise
• All 5083 marine grade aluminum hull construction
• 1/4″ bottom, 3/16” sides and deck
• Heavy duty reinforced hull framing and keel bar bow grounding protection
• Mechanical Hydraulic Steering
• Noise and vibration damping foam and insulation throughout hull
• Fully painted white interior with choice of exterior paint color
• 74 USG (280L) below deck fuel tank. EPA compliant, w/fuel water separator
• One (1) 900 GPM bilge pumps and high-water alarm
• Two battery setup for cranking and house circuits. Includes switch with combine feature
• Walk-thru transom door to swim deck or dock access
• Telescopic reboarding ladder, with handrail
• Six (6) stainless steel 8” mooring cleats, 3 per side
• Handrail around bow and roof
• Grabrails throughout interior
• Partially enclosed center console helm station with aluminum hardtop
• Bow anchor locker
• Three (3) piece tempered glass windshield with 2 speed heavy duty wiper
• Port and Starboard Sliding Windows
• Standard LED navigation lights, and dual trumpet horn
• Deluxe captain and copilot helm seats with armrests, flip up bolster, and footrest
• Dash layout built to accommodate twin 16” displays, helm and controls
• RA70 Deck with 4 speaker stereo setup
• Lockable glove box, compass, multiple USB/power points, and 2 cup holders at helm
• Tri-color overhead lighting and blue LED deck lighting throughout
• Navigator Map Light
• Stern couch style seat with cup holders and vented weathertight storage + mechanical
• Fully Enclosed Cuddy with Headliner, Wall -Liner, and Cushions
• Hardtop Construction with 20” Bomar Hatchway
• Weathertight below floor storage inside Cabin
• Swim Platform SeaDek Flooring
• Zipwake automatic trim tabs and controls (can remove or swap for Lenco manual type)

Options

• Choice of Outboard Power with a maximum of 350HP
• Choice of DTS Electric Steering
• Twin Garmin GPSMAP 8416 (16”) displays with US
  and Canada charting, and GPS. Transducer features traditional CHIRP sonar + High def ClearVU and SideVU imaging. Yamaha engine data and autopilot features are fully integrated with Garmin displays.
• Full Deck SeaDek flooring, grey on black with teak striping shown.
• Docking lights facing forward oƯ bow
• Underwater blue LED lights oƯ transom
• Anodes, Zinc for saltwater use (other options for freshwater)

Additional options available, not shown

• Additional batteries
• Remote battery switches at helm
• Automatic charge relay(s)… for charging batteries outside of cranking circuit (house, etc.). Not required with Yamaha outboards equipped with isolated charging harness.
• Radar, on pedestal or arch
• Low light or infrared camera
• Remote controlled spotlight
• Some additional options may be available upon request. Let us know.
